Lubrication Equipment

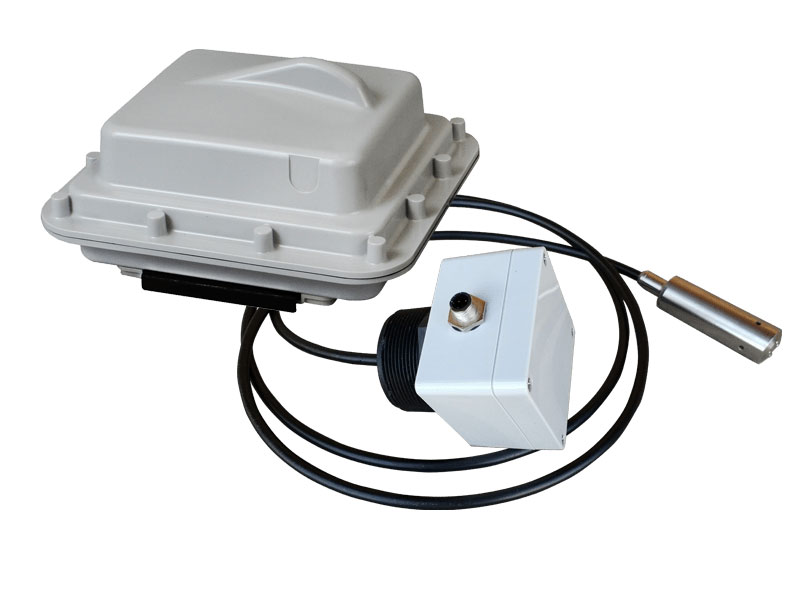

The FTM provides accurate and reliable tank monitoring across a range of environments, including chemicals, oils, lubricants and fuel.

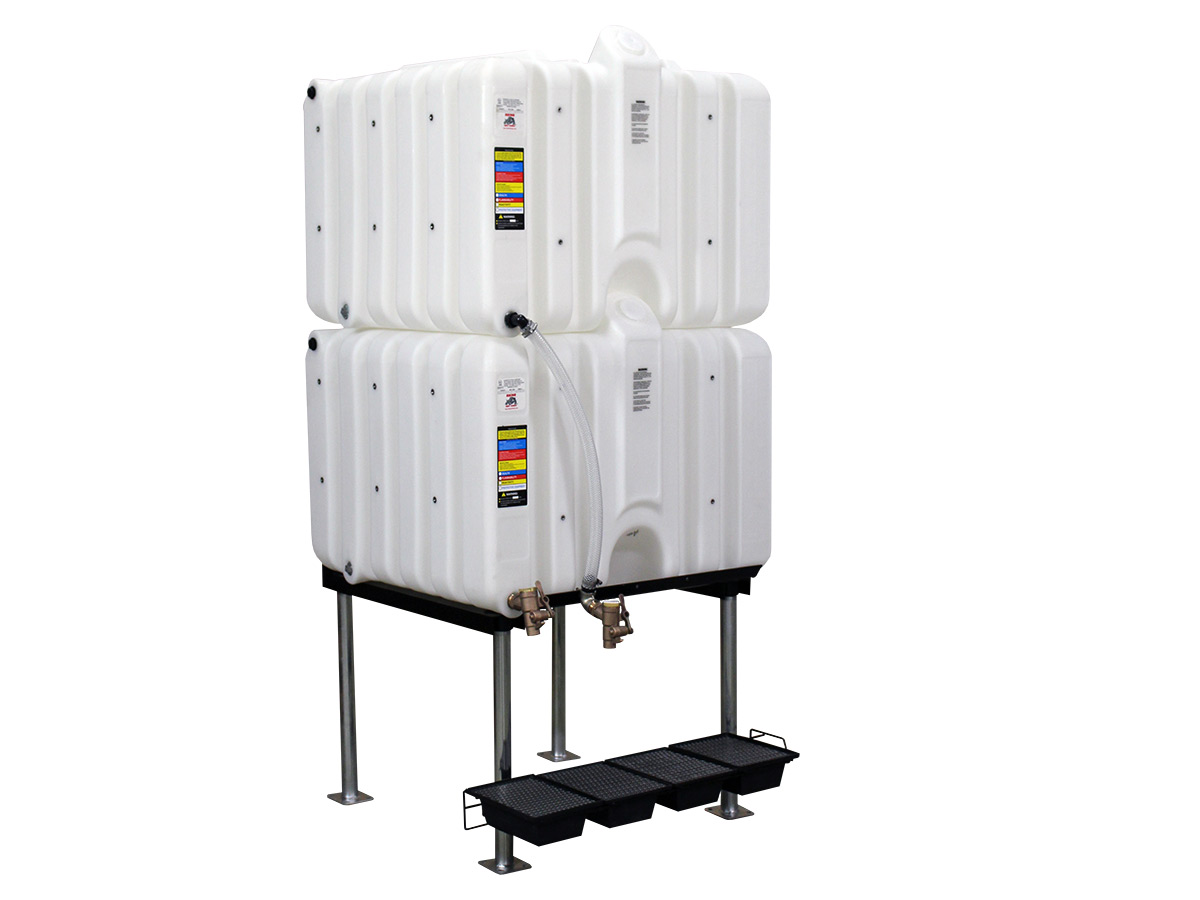

We offer both Rhino Tuff Tanks And Snyder poly tank systems. HDPE constructed and ULC listed. All available sizes share a 36” x 36” footprint and can be stacked in any combination up to 360 gallons. Provides storage that is clean, efficient and easy to use.

Gravity Feed Packages include:

• Tank(s)
• Stand Kit with 24” Legs
• Drip Tray Kit
• Gravity Feed Accessories
• Brass Spring Release Valves (1 per Tank)

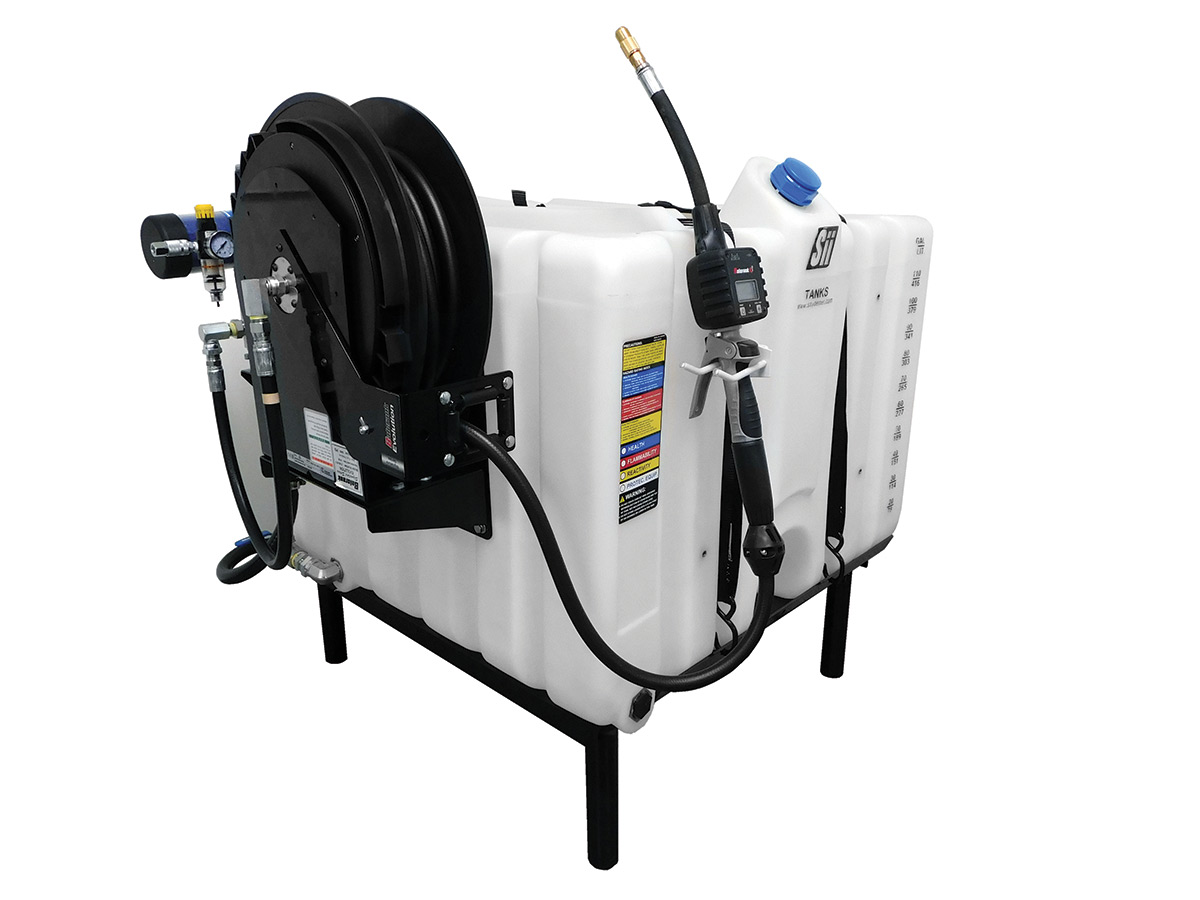

Pump Systems provide versatile options for clean, convenient and accurate dispensing from the tank, directly to your equipment. Side mount systems are compatible with Rhino Tuff’s stackable tanks along with Snyder poly tank systems. All Side Mount and Top Mount Pump Systems are assembled at the factory. Wall Mount Systems are shipped unassembled. Tanks and Stand sold separately.

Packages include:

• Hose reel – choice of Evolution or Classic series hose reel, 30’ or 50’
• Pump – Choice of Lynx 3:1, CF15 or CF30
• DR handle w/ flex-m ext. and 1/4 manual tip
• F/R auto drain 1/4” NPT(F)
• Pump and reel bracket

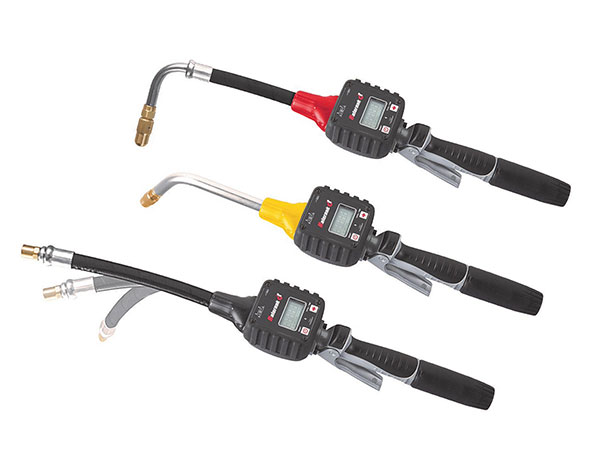

Digital Registry Meter (DR) – comes with a precision machined aluminum die-cast fluid chamber for repeatable accuracy, sealed battery compartment, meter uses 2-standard AA batteries, auto-sleep mode, trip mode to reconcile fluid inventory, nonresettable totalizer; maintains total volume dispensed by meter, flange coupled design; prevents leakage around meter body and grip, economic designed grip for less hand fatigue, swivel protective cover and a 1/4 turn manual nozzle.

• 3330-157 – Rigid Extension, 1/4 Turn Manual Nozzle
• 3330-159 – Flex Memory Extension, 1/4 Turn Manual Nozzle
• 3330-161 – Flex Extension, Auto Nozzle

Roth tanks are lightweight, double walled oil dispensing tanks. Packages are available that include the tank, pump, reel, control handle, gauge and fill cap. Tanks are available in 165, 275, or 400-gallon sizes.

• Inner tank made of blow-molded, high-density, seamless polyethylene that is leak-proof and will never corrode
• Outer tank is made of weld-free galvanized steel and roll seamed with an oil and fire-resistant seal
• Outer tank holds 110 percent of inner tank for maximum protection
• Extremely light, up to 50 percent lighter than conventional steel tanks
• Can be used for DEF, diesel and bio fuels, motor oil and ATF
• Compact, economical design (8 sq. ft. for 1000L)
• Wide handles on each end allow you to transport and handle with ease
• UL 2258 certified*
• 4 x 2” bung opening

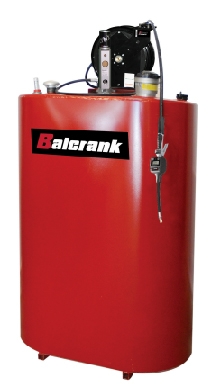

Choose vertical Obround tanks when floor space is limited. Vertical Obround tanks have the smallest footprint per gallon of oil. Packages are available that include the tank, pump, reel, control handle, gauge and fill cap.

330-gallon Vertical Obround Tanks are available in these configurations:

• 1134-027 – Single Wall, Lynx 3:1 Pump, Classic Hose Reel
• 1134-025 – Single Wall, Panther 3:1 Pump, Classic Hose Reel
• 1134-028 – Double Wall, Lynx 3:1 Pump, Classic Hose Reel
• 1134-026 – Double Wall, Panther 3:1 Pump, Classic Hose Reel
